Mk23 MTVR & 16.6 ton LHS
ayovtshev
#490
Visit this Community
Sofiya, Bulgaria
Joined: September 22, 2016
KitMaker: 1,387 posts
Armorama: 1,346 posts
Posted: Monday, November 06, 2017 - 01:04 AM UTC
In-depth research and top notch scratchbuilding: the trademark of Michael Koenig!
Mike, I take my hat off!
165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,205 posts
Armorama: 8,439 posts
Posted: Sunday, November 05, 2017 - 08:22 PM UTC
Fold out guides for use when loading containers:
(Not used when loading Flatracks)

Still working in the research mode for building the Container Support Guides that mount at the rear of these LHS vehicles. In addition to the support arms and guide trays there is a massive structure ahead of the arms that keeps the arms from folding up during the loading process. I have since found there is much more to these structures than first realized.


. . . . . . . . . . .
165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,205 posts
Armorama: 8,439 posts
Posted: Sunday, November 05, 2017 - 08:06 PM UTC
A small piece of general information regarding shipping containers in general:

165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,205 posts
Armorama: 8,439 posts
Posted: Saturday, November 04, 2017 - 10:08 PM UTC
Some info into how the lower "Rotalock" locking pins work:

. . . . . . . . . . . . . . .

Lift that spring loaded retainer plate (Blue) and shift the handle (Green) to the horizontal position. You now have the Rotalock in the locked position. Finally turn that star shaped knob (Gray) to tighten the lock and take any slack out of the connection.

______________________________________________________________________________________________

More reference, this time on how the the CHU can be locked to the lift arm when NOT attached to a container for transport:





165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,205 posts
Armorama: 8,439 posts
Posted: Saturday, November 04, 2017 - 07:17 PM UTC
Recent progress on the CHU project:



Those two vertical poles stored one under each "arm pit" are the two pieces that form the standing support jake leg. This is used when storing the CHU in the upright position.





Just a few more minor details to add to my CHU and then PAINT and done!
165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,205 posts
Armorama: 8,439 posts
Posted: Saturday, November 04, 2017 - 11:20 AM UTC
Another small correction:

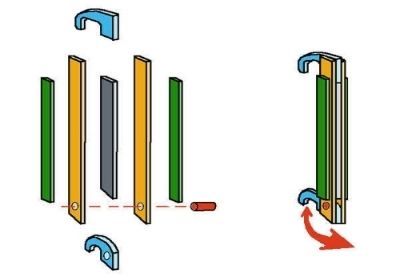

Here is the "before" picture that you saw earlier at the top of this page -




During construction I missed this detail - adding a small gap in the center of the movable hook shaft. (Gray) On the real CHU another hook can be inserted into this gap to accommodate an assortment of different height containers. (This hook is actually the one that is designed to accommodate the half-height containers.)

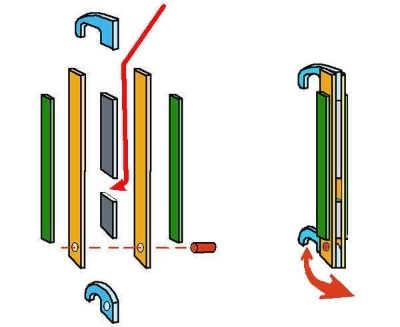

And now the "after" image -


Bottom two drawings are from the TM. This will give you an additional correct detail on the movable hooks. However if in the end you want to deal with multiple containers of different heights adding this option will allow you to keep your options open for the future.
165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,205 posts
Armorama: 8,439 posts
Posted: Saturday, November 04, 2017 - 02:53 AM UTC
Currently at a temporary impasse - I think I may have to start over on those heavy swing arms that support the guide trays when loading a container.
165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,205 posts
Armorama: 8,439 posts
Posted: Friday, November 03, 2017 - 09:23 PM UTC
Does anyone other than myself see the mother bird feeding the two baby birds in the above photo?

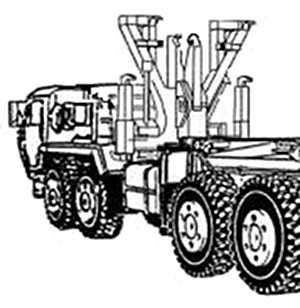

The frame that supports the two baby birds is actually a stand that will hold the CHU when not in use. Somehow the CHU is flipped over upside-down on the hook and then lowered onto these two "baby birds" to be stored there in order to free up the big hook when dealing with a flatrack rather than container.

I believe this is correct but do not yet know how
this upside-down action is accomplished.
165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,205 posts
Armorama: 8,439 posts
Posted: Friday, November 03, 2017 - 12:42 PM UTC
On-vehicle stowage of guide tray extension:

165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,205 posts
Armorama: 8,439 posts
Posted: Thursday, November 02, 2017 - 08:34 AM UTC

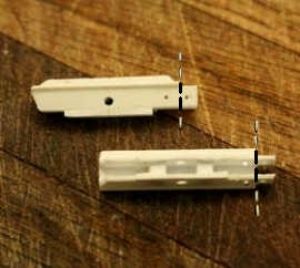

Reworked the guide trays today - I had it wrong regarding the two tabs sticking out the rear of the tray.
Yes the container load locks connect to these tabs but the tabs do not extend beyond the end of the guide tray.

Two snips with the sprue cutters, re-drill two holes - done.

________________________________________________________________________________


Also made a trip to my LHS and picked up the smallest size square brass tubing they had. Used the tubing to build the mounts
for the removable extended guide wings on the sides of the trays.


I hope to make the guide extensions removable on my model as well.
165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,205 posts
Armorama: 8,439 posts
Posted: Wednesday, November 01, 2017 - 05:01 AM UTC
Hard to find a good photo angle on this little gizmo!


Mounting these on the already completed Mk frame is going to be another issue, as in challenging!
165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,205 posts
Armorama: 8,439 posts
Posted: Wednesday, November 01, 2017 - 12:23 AM UTC
For those interested: I have recently revised and/or colorized a number of the drawings posted within the last two pages of this thread. In a number of cases I have corrected problems with the drawings and, I think, made them more understandable.

Just sharing that fact.
165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,205 posts
Armorama: 8,439 posts
Posted: Tuesday, October 31, 2017 - 11:36 PM UTC
Construction of the guide trays is progressing along:

165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,205 posts
Armorama: 8,439 posts
Posted: Tuesday, October 31, 2017 - 12:17 PM UTC
Roughing in the new parts blanks for the CHU container support guides:


The two massive support arms are at the top, lower left and right are the support guide trays themselves and finally in the center is the start of the 'T' bearing assemblies to connect all these parts together.
165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,205 posts
Armorama: 8,439 posts
Posted: Tuesday, October 31, 2017 - 03:16 AM UTC

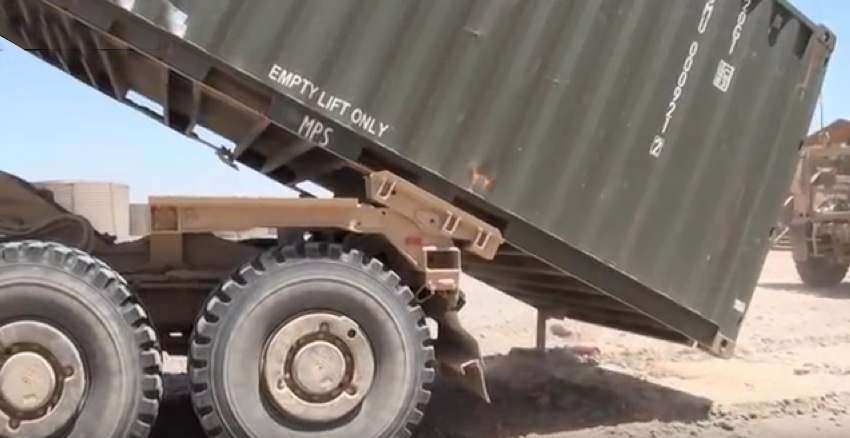

Well this photo answers one question. The heavy arm that supports the guide tray is canted on it's pivot axis. As you rotate the arm out 90 degrees to the frame it swings both out AND upwards. The guide tray ends up being higher than the rollers (as it should be) when the whole thing is finally locked into place.



The above applies to both the HEMTT and the Mk 8x8 LHS vehicles. The above design DOES NOT apply to the PLS which has a different fixed, non-folding support guide design.

_______________________________________________________________________________________________

Fixed support guides on a PLS. (Do not know what they do when they encounter having to haul a Flatrack. I suspect they just remove the guide tray and stow it somewhere on the vehicle.)



165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,205 posts
Armorama: 8,439 posts
Posted: Tuesday, October 31, 2017 - 03:14 AM UTC
Thank you Gino - I will check that out!
HeavyArty
Visit this Community
Florida, United States
Joined: May 16, 2002
KitMaker: 17,495 posts
Armorama: 13,587 posts
Posted: Tuesday, October 31, 2017 - 02:22 AM UTC

Quoted Text



Anyone have a set of the Italeri #6516 decal sheet they would be willing to part with/sell?




If you go to the Italeri website, you can order the decal sheet for about $5. You just email them the request as a parts request with the kit #. They also sell individual sprues the same way for $5 each as well. I got the gun ring sprue from the M977 guntruck kit that I used on my M983A2.

165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,205 posts
Armorama: 8,439 posts
Posted: Tuesday, October 31, 2017 - 02:20 AM UTC

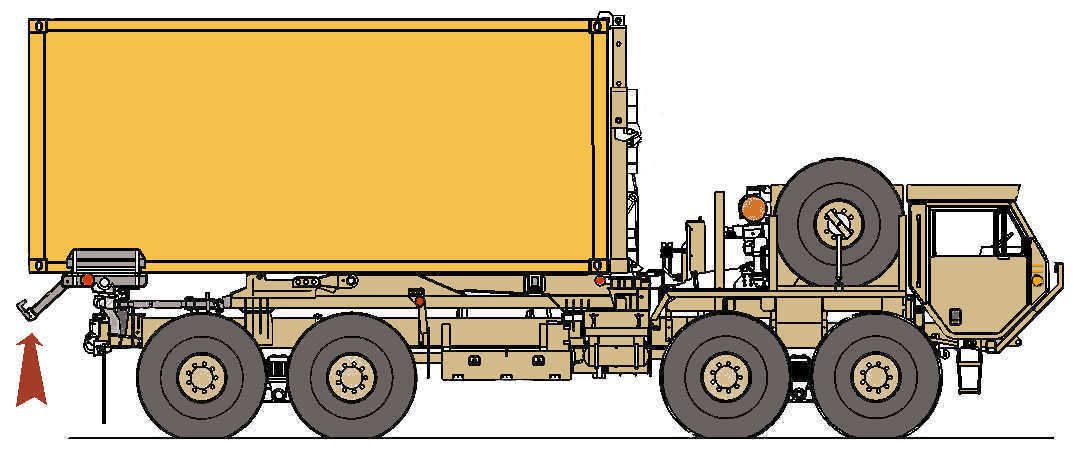

Close-up, colorized views (more photoshop) of the container support guides from the Tech Manual:

. . . . .



. . . . .
165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,205 posts
Armorama: 8,439 posts
Posted: Tuesday, October 31, 2017 - 01:55 AM UTC
Earlier Gino mentioned the rear container supports - I like to call them support guides.

Any vehicle that is going to carry containers without also using an intermediate flatrack must have these container support guides installed. The bottom of the standard container is not suitable to work with the rear loading rollers that are intended to work with the flatracks. These support guides can be retrofitted onto just about any LHS vehicle. They fold out of the way when loading a standard flatrack but must be unfolded and locked in place in order to load a container. This is true for almost ALL military vehicles including HEMTT LHS, the Navy Mk 8x8 LHS and the PLS with LHS.

. . . . . . . . .


Note above: Container Load Lock in the open position.

_________________________________________________________________________________




Container Load Lock, LOCKED.
165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,205 posts
Armorama: 8,439 posts
Posted: Monday, October 30, 2017 - 01:47 PM UTC
I know this is a long shot but . . . .

Anyone have a set of the Italeri #6516 decal sheet they would be willing to part with/sell?

165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,205 posts
Armorama: 8,439 posts
Posted: Monday, October 30, 2017 - 12:33 PM UTC
Really? Here in the US we have only been vaccinated against the E-CHU. Looks like we may be in for a rough season!
RobinNilsson
Staff MemberTOS Moderator
KITMAKER NETWORK
Visit this Community
Stockholm, Sweden
Joined: November 29, 2006
KitMaker: 6,354 posts
Armorama: 5,300 posts
Posted: Monday, October 30, 2017 - 12:27 PM UTC

Quoted Text

Great scratchbuilding skills Mike ! I've just came across a different type of CHU, called Enhanced Container Handling Unit (E-CHU) built by HIAB/Multilift :




https://vimeo.com/24496794

H.P.



here in Sweden we will soon be getting the A-CHU

/ Robin
165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,205 posts
Armorama: 8,439 posts
Posted: Monday, October 30, 2017 - 06:07 AM UTC
Gino I definitely want to see more of your PLS. Hope the unpacking goes quickly.

I still have not worked out the "design engineering" on those rear container guides. I have hopes of working out something that can actually be folded up so I can use either a flatrack or the CHU w/container on either the HEMTT or the Mk 8x8's. I got a feeling I will have to build one truck as folded and one as extended but that will be very limiting.

Probably my next build will be a 20' AMCOM half-height ammo contanier.
HeavyArty
Visit this Community
Florida, United States
Joined: May 16, 2002
KitMaker: 17,495 posts
Armorama: 13,587 posts
Posted: Monday, October 30, 2017 - 05:57 AM UTC
The CHU is coming along great. Waiting to see how the rear support portion looks; great I'm sure. The hood color looks good to me as well.

I can't wait to get back to work on my PLS. We just moved into our new house and have started wading through boxes. The hobby room will be last to unpack, unfortunately.
165thspc
#0
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,205 posts
Armorama: 8,439 posts
Posted: Monday, October 30, 2017 - 05:39 AM UTC

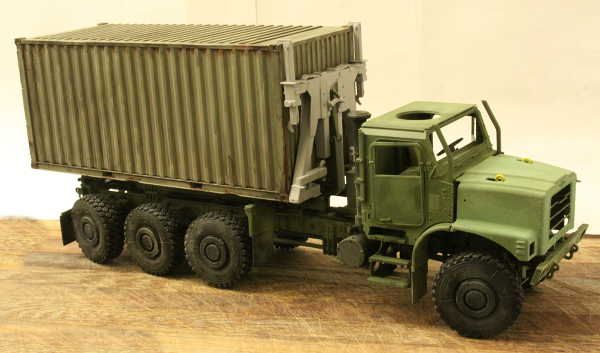

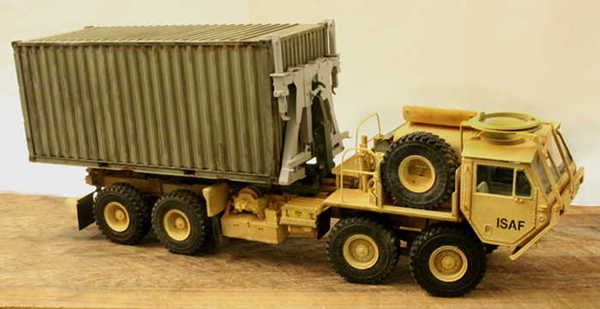

Just taking a few "fun" photos while enjoying this build:









p.s. What is the general opinion here? Have I overdone the faded pale green treatment on the Oshkosh fiberglass hood? I could tone that down considerably but I sort of like it.

I don't know if it is the paint Oshkosh uses that reacts with the fiberglass or, more likely the color is actually manufactured INTO the fiberglass and the dye in the fiberglass doesn't hold up as well as the real paint on the rest of the vehicle when exposed to sunlight. Whatever they are using, both the green and the sand colors fade rapidly. The green more so than the sand.
