Interior Reference Images for AAVR-7A1
m75
Visit this Community
California, United States
Joined: July 20, 2002
KitMaker: 599 posts
Armorama: 594 posts
Posted: Friday, May 17, 2019 - 10:00 AM UTC
I'm looking for color references that cover the Hobby Boss AAVR-7A1 recovery Amtrak. Seems that the majority of the hull interior would be the same Sea Foam Green as the M113 series? Color images of the 1:1 item would be a large help!
AmTrac1833
#431
Visit this Community
Florida, United States
Joined: February 20, 2014
KitMaker: 340 posts
Armorama: 277 posts
Posted: Friday, May 17, 2019 - 01:23 PM UTC

Quoted Text

I'm looking for color references that cover the Hobby Boss AAVR-7A1 recovery Amtrak. Seems that the majority of the hull interior would be the same Sea Foam Green as the M113 series? Color images of the 1:1 item would be a large help!



I have pics somewhere, away from home at moment but can provide when I return.
Sea foam green is too bright, look for Pale Green. Mig has a really good match and I think it is "APC Interior Green."

Skulijani
Visit this Community
Pest, Hungary
Joined: January 13, 2018
KitMaker: 2 posts
Armorama: 2 posts
Posted: Friday, May 17, 2019 - 04:02 PM UTC
The color of my vehicle Mig APC Interor Green.

See the link:

https://drive.google.com/drive/folders/0B481ZaAFs2n8Yk1zMHJUblVVYlU?usp=sharing

I hope it works.
Frenchy
Visit this Community
Rhone, France
Joined: December 02, 2002
KitMaker: 11,884 posts
Armorama: 11,680 posts
Posted: Friday, May 17, 2019 - 05:31 PM UTC
The pictured vehicle is an Italian Army one, but I guess it should be similar to a USMC one (regarding interior colors at least):

http://www.ferreamole.it/images/aavr7/aavr.htm

Another option for the paint to be used is Tamiya XF-71 Interior Green(IJN).

Here's a busy interior :



H.P.
bison126
Visit this Community
Aube, France
Joined: June 10, 2004
KitMaker: 4,996 posts
Armorama: 4,871 posts
Posted: Friday, May 17, 2019 - 11:11 PM UTC
Tamiya XF 21 Sky is a good match as well.
Olivier
m75
Visit this Community
California, United States
Joined: July 20, 2002
KitMaker: 599 posts
Armorama: 594 posts
Posted: Sunday, May 19, 2019 - 02:27 AM UTC
Wow, now THAT is what I call cozy!. And that was before I read the comment on the image....

Skulijani, your in-progress photos are very much appreciated.

My thanks to all for your suggestions. The wife is leaving for a week, and that's the time where the airbrush will be busy. I'll try posting images as it moves along.
AmTrac1833
#431
Visit this Community
Florida, United States
Joined: February 20, 2014
KitMaker: 340 posts
Armorama: 277 posts
Posted: Sunday, May 19, 2019 - 04:05 AM UTC
Finally returned home. Here are some interior photos, not of the R7 but hopefully provides good color reference.

http://s10.photobucket.com/user/deattilio/library/Amtracs/Interior%20various

If interested in an odd-ball R7, here several pics of the R7 at Amphibious Vehicle Test Branch '97-'99 time frame. It had the Bradley suspension but was not fully modified to RAM/RS (yet). While it had the old VT400 engine, they modified the exhaust to an "overboard exhaust" so the exhaust wasn't blowing right at the crane operator when at high RPM. It was just a regular exhaust tube pointed out to port similar to the RAM/RS but, was not a muffler and had a small screen over it for protection. The orange hatches indicated the vehicle belonged to AVTB and the orang "blocks" on port and starboard were depth measurement markings. Not often you come across a colorful AAV as their regular/daily makings.



Frenchy
Visit this Community
Rhone, France
Joined: December 02, 2002
KitMaker: 11,884 posts
Armorama: 11,680 posts
Posted: Sunday, May 19, 2019 - 05:12 AM UTC
Some detail views from late David Harper's amtrac book :





H.P.
m75
Visit this Community
California, United States
Joined: July 20, 2002
KitMaker: 599 posts
Armorama: 594 posts
Posted: Monday, May 20, 2019 - 03:15 AM UTC
Thank you Henri!
m75
Visit this Community
California, United States
Joined: July 20, 2002
KitMaker: 599 posts
Armorama: 594 posts
Posted: Tuesday, May 28, 2019 - 10:58 AM UTC
OK, the interior overall light green is on and curing. Question: What would be the standard color on the inside portion of the overhead cargo bay doors/hatches? Is there a softer surface that is paddded, a visible black rubber seal/gasket?
AmTrac1833
#431
Visit this Community
Florida, United States
Joined: February 20, 2014
KitMaker: 340 posts
Armorama: 277 posts
Posted: Tuesday, May 28, 2019 - 12:39 PM UTC

Quoted Text

OK, the interior overall light green is on and curing. Question: What would be the standard color on the inside portion of the overhead cargo bay doors/hatches? Is there a softer surface that is paddded, a visible black rubber seal/gasket?



Hatches (inner portions) are NATO green, as is the deck and interior of the ramp. On drawings it is referred to as "GREEN 383." Inside of driver, VC & TC hatches have padding that looks black with tinge of brown in the right light.
m75
Visit this Community
California, United States
Joined: July 20, 2002
KitMaker: 599 posts
Armorama: 594 posts
Posted: Wednesday, May 29, 2019 - 05:34 AM UTC
Thanks again. I noticed the black/brown of the driver seat cushions, and they appear the same as those in many of the M113s/M114s I drove/serviced "in the day". Especially when stepped on a few thousand times.
AmTrac1833
#431
Visit this Community
Florida, United States
Joined: February 20, 2014
KitMaker: 340 posts
Armorama: 277 posts
Posted: Wednesday, May 29, 2019 - 11:54 AM UTC

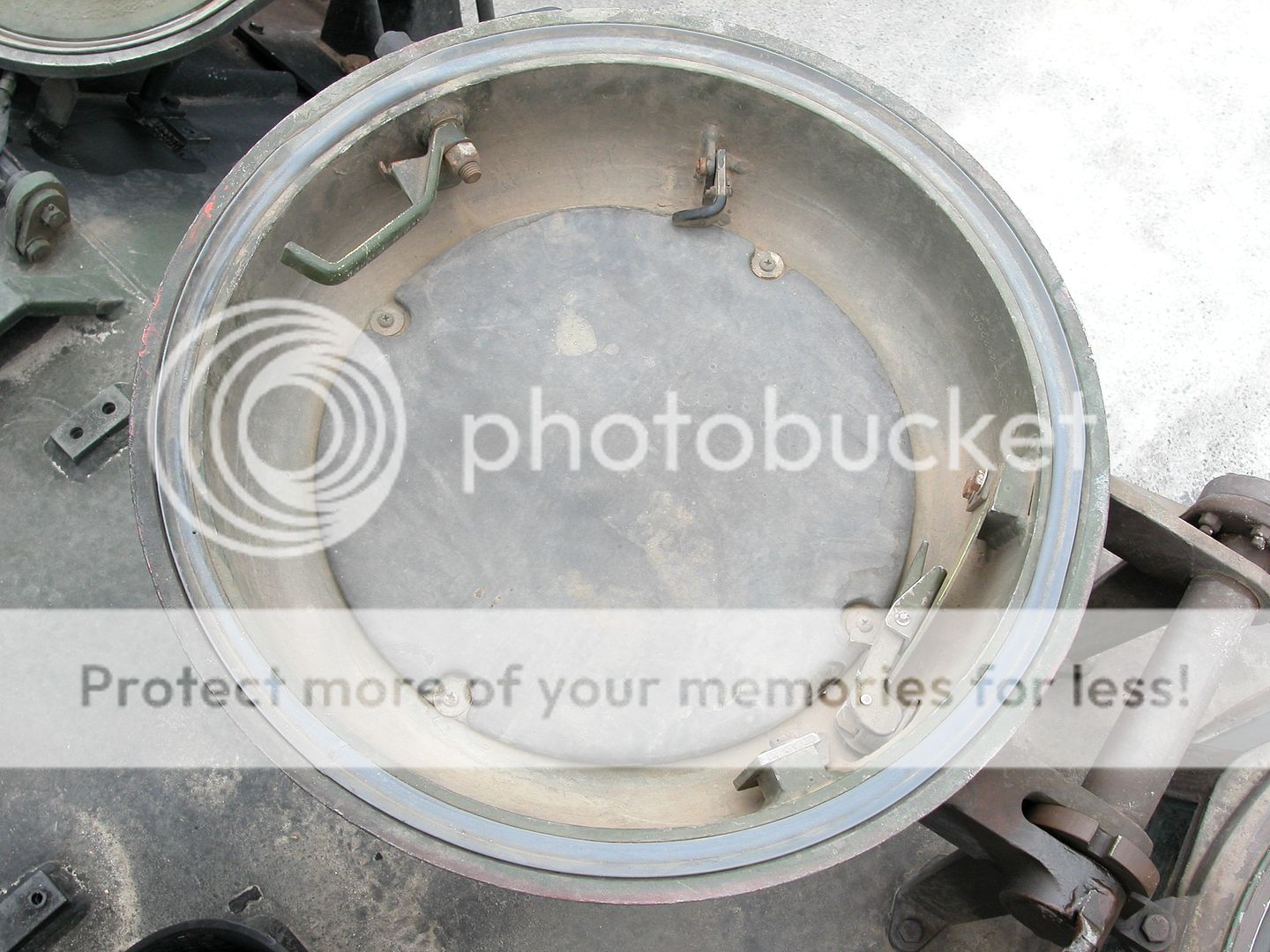

Had to dig a little but found couple shots I had stashed away of inside of the driver and TC hatches. These look fresh from the field before getting a good wash down. Probably looks identical to your M113 experience. The VC on the R7 is the same as the VC on the P7. Also have one of both cargo hatches open – these are all P7s but color wise will be same on R7. Finally, a shot of the TC and driver station to show the color differences between bulkheads and deck.






m75
Visit this Community
California, United States
Joined: July 20, 2002
KitMaker: 599 posts
Armorama: 594 posts
Posted: Thursday, May 30, 2019 - 06:15 AM UTC
Many thanks again!
